When it comes to modern fluid management, subsoil drainage, and environmental containment, choosing the right piping material can make or break your project’s long-term success. Using High-Density Polyethylene (HDPE) piping offers a distinct engineering and operational advantage over traditional concrete, PVC, or even metal piping.

But premium material only gets you there halfway, to ensure the HDPE piping is doing its job you need specialised installation, and when it comes to HDPE piping, Gundle Geosynthetics knows best.

Gundle Geosynthetics delivers complete, integrated systems. When it comes to precision on-site installation, no one does it better than Gundle Geosynthetics.

While standard HDPE pipes handle basic pressurised water lines, Gundle’s specialised geopipe range focuses heavily on environmental protection, structural engineering, and civil or agricultural infrastructure. These pipes are frequently integrated with companion products into complete, system solutions.

The Gundle Geopipe Trio

Gundle features three distinct HDPE geopipes designed for subsurface fluid management, structural protection, and containment:

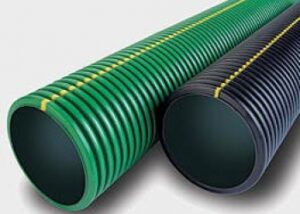

  • Kableflex: A corrugated underground duct system built as a protective conduit for heavy-duty electrical cables, fibre optic networks, and traffic wiring. It’s tough, corrugated exterior protects high-value cables from crushing under heavy surface traffic or ground movement, while the smooth interior allows long cables to be pulled through easily.
  • Drainex: A flexible, slotted drainage pipe with a corrugated outer wall for high crush resistance and a smooth internal bore for rapid flow. It is used on farms to control shallow water tables and prevent waterlogging. In civil engineering, it drains subsoil water along road shoulders and behind retaining walls to prevent asphalt cracking. It also keeps sports fields dry by accelerating stormwater infiltration.
  • Wastex: Engineered for aggressive, high-consequence containment zones. It is installed at the base of landfills to safely collect toxic leachate runoff and route it to treatment facilities. On mining heap leach pads and tailings dams, Wastex collects mineral-bearing processing fluids and drains acidic wastewater, easily resisting breakdown from harsh mining chemicals and acids.

To ensure your HDPE geopipes last a lifetime

Because HDPE is naturally durable, a system’s lifespan depends almost entirely on installation and operational care. Gundle ensures long-term performance by enforcing four critical rules:

Eliminate point loading: While HDPE is flexible it relies on surrounding soil to support vertical weight. To prevent sharp rocks from pressing into the pipe and causing stress cracks, the pipe is installed on a 100 mm baseline of fine, uniform bedding material, and backfill is kept completely rock-free for up to 300 mm above the pipe.

Prevent clogging: For subsoil drainage, siltation is the primary threat. The stone aggregates surrounding the pipe can be wrapped with a non-woven geotextile filter fabric like Guntex to let water filter through while permanently keeping fine soil out.

Shield from UV: Prolonged sun exposure can break down polymer chains, making pipes brittle. If stored above ground for over 12 months, pipes should be covered with a breathable, light tarpaulin.

The correct welds: For pressurised lines, weak “cold-welds” can be avoided by scraping away surface oxidation before butt-fusion or electrofusion welding. To eliminate joint-rupturing caused by sudden changes in fluid velocity, the installation of a slow-closing valve and variable-frequency drives (VFDs) on pumps will help.

By pairing world-class HDPE geopipes like Drainex, Wastex, and Kableflex with proven installation practices and companion products like Guntex geotextiles, Gundle Geosynthetics delivers an unmatched, comprehensive solution to the African continent.

Whatever your need is, you can trust the experts who know HDPE best. Visit Gundle Geosynthetics website at https://www.gundlegeo.co.za/ to learn more or get in touch.
